PwnCNC Dual-Shielded Closed-Loop Stepper Cable
PwnCNC exclusive • Custom-designed for closed-loop stepper systems • Sold by the foot
This cable was custom-designed by PwnCNC for clean, reliable wiring of closed-loop stepper motors. It combines the motor-power and feedback/control conductors into one durable cable assembly, making it an excellent fit for custom CNC builds, retrofit projects, PwnCNC Dominator Pro machines, and PwnCNC Advanced Conversion Kits.
PwnCNC Exclusive Design
This is not an off-the-shelf cable. It was developed specifically for the wiring requirements of closed-loop CNC stepper systems and is available exclusively from PwnCNC.
Why This Cable Is Different
- Purpose-built for closed-loop steppers: Carries motor power and encoder/control wiring together in one coordinated cable assembly.
- Dual-shielded construction: Provides strong protection against electromagnetic interference in electrically noisy CNC environments.
- Simplifies machine wiring: Reduces the need to run separate motor and feedback cables along the machine.
- Flexible by-the-foot ordering: Purchase only the length needed for your machine, axis, or retrofit project.
- PwnCNC ecosystem compatibility: Used with our Dominator Pro machines and Advanced Conversion Kits.

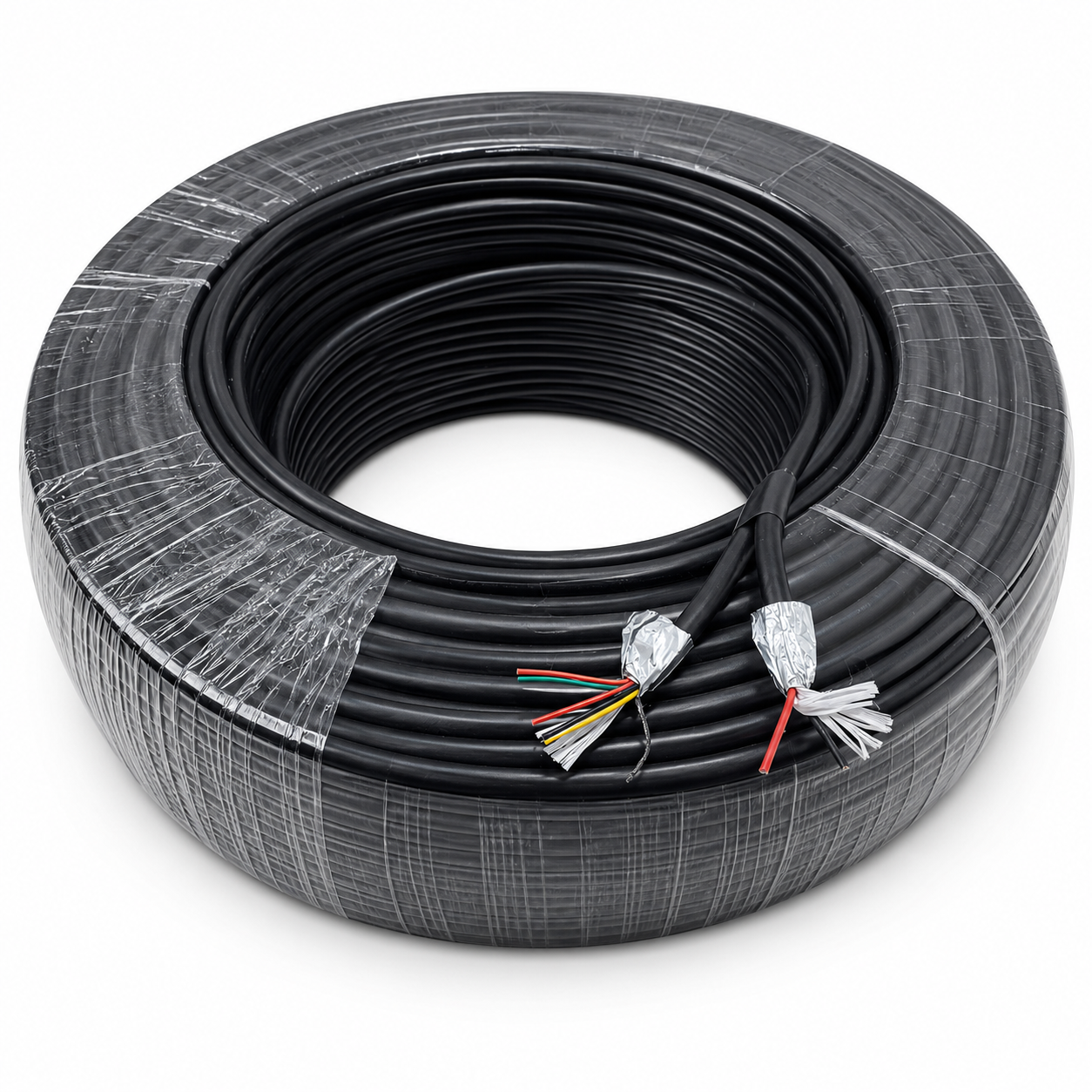

Cable Construction
- One 6-conductor section using 24 AWG tinned stranded wire
- One 2-conductor section using 22 AWG tinned stranded wire
- Physically separated, dual-shielded internal construction
- PVC insulation and outer jacket
- Rated temperature: 80°C
- Rated voltage: 300V
- RoHS-compliant materials
- Dielectric test: 2000 VAC for one minute
Ideal For
- PwnCNC Dominator Pro replacement or expansion wiring
- PwnCNC Advanced Conversion Kits
- Closed-loop NEMA 23 stepper motors
- MASSO and other compatible closed-loop CNC control systems
- Custom CNC machines and controller retrofits
Ordering
This product is sold by the linear foot. Enter the total number of feet needed as the quantity. For example, a quantity of 20 equals one continuous 20-foot length whenever available.
Shield Grounding
For best EMI performance, the cable shield must be terminated and grounded correctly at the controller or enclosure end according to the requirements of your control system. Improper grounding can reduce shielding effectiveness or create ground-loop problems.
Installation Note
This is bulk unterminated cable. Connectors, terminals, strain relief, and installation labor are not included. Verify conductor assignments, current requirements, bend radius, and compatibility with your specific motor and controller before installation.
