MASSO Plasma DTHC Module – Digital Torch Height Control

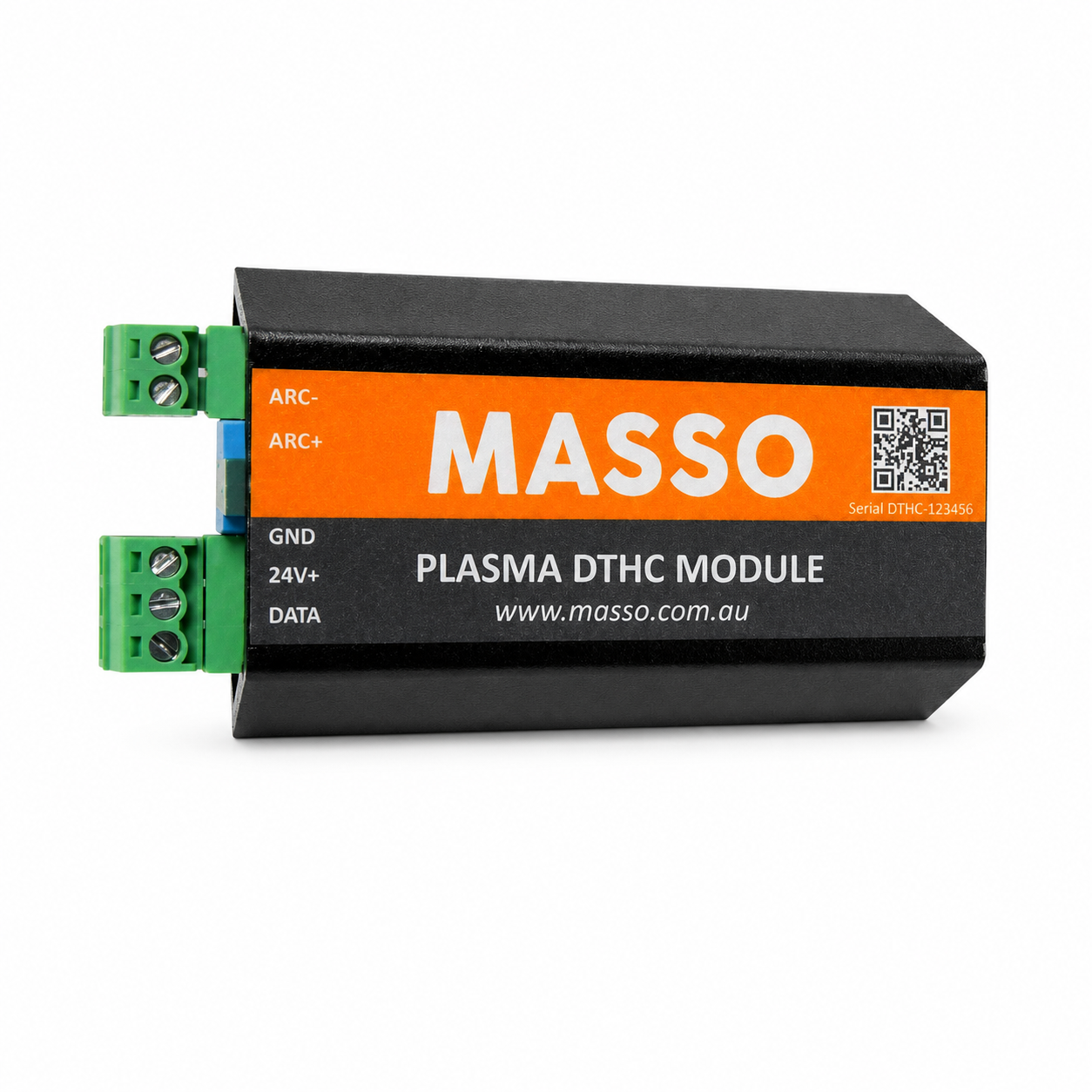

MASSO Plasma DTHC Module

Digital torch height control for MASSO-powered CNC plasma systems

The MASSO Plasma DTHC Module provides real-time digital torch height control by monitoring arc voltage and communicating directly with a compatible MASSO controller. It helps maintain consistent torch-to-material distance throughout a cut, improving cut quality and reducing the need for manual height adjustments.

Key Features

• Real-time arc-voltage monitoring: Reads voltage data from a compatible plasma cutter voltage-divider output.
• Automatic torch-height correction: Allows the MASSO controller to adjust torch height during cutting.
• Integrated MASSO workflow: Torch-height settings and cut parameters are managed through the MASSO plasma setup and program.
• Optical isolation: Helps protect the controller from electrical noise and voltage spikes commonly found in plasma environments.
• Multiple divider-ratio support: Compatible with common divided-voltage outputs including 50:1, 30:1, 20:1, and 16:1.
• Compact installation: Small module with removable screw terminals for straightforward enclosure wiring.

Compatibility

• Designed for supported MASSO CNC plasma applications
• Requires a plasma cutter with a compatible voltage-divider output
• The plasma cutter, controller, wiring, and machine configuration must all support digital torch height control

Important Installation Notes

• Observe polarity carefully. Reverse polarity can damage the module.
• Plasma systems can generate significant electrical noise. Follow MASSO’s grounding, shielding, and wiring recommendations.
• Confirm the required voltage-divider ratio and connection points in the documentation for your specific plasma cutter before wiring.

What’s Included

• One genuine MASSO Plasma DTHC Module
• Removable screw-terminal connectors

Documentation

Installation and configuration requirements vary by plasma cutter and machine. Refer to the official MASSO DTHC and plasma setup documentation before installation.
